Description

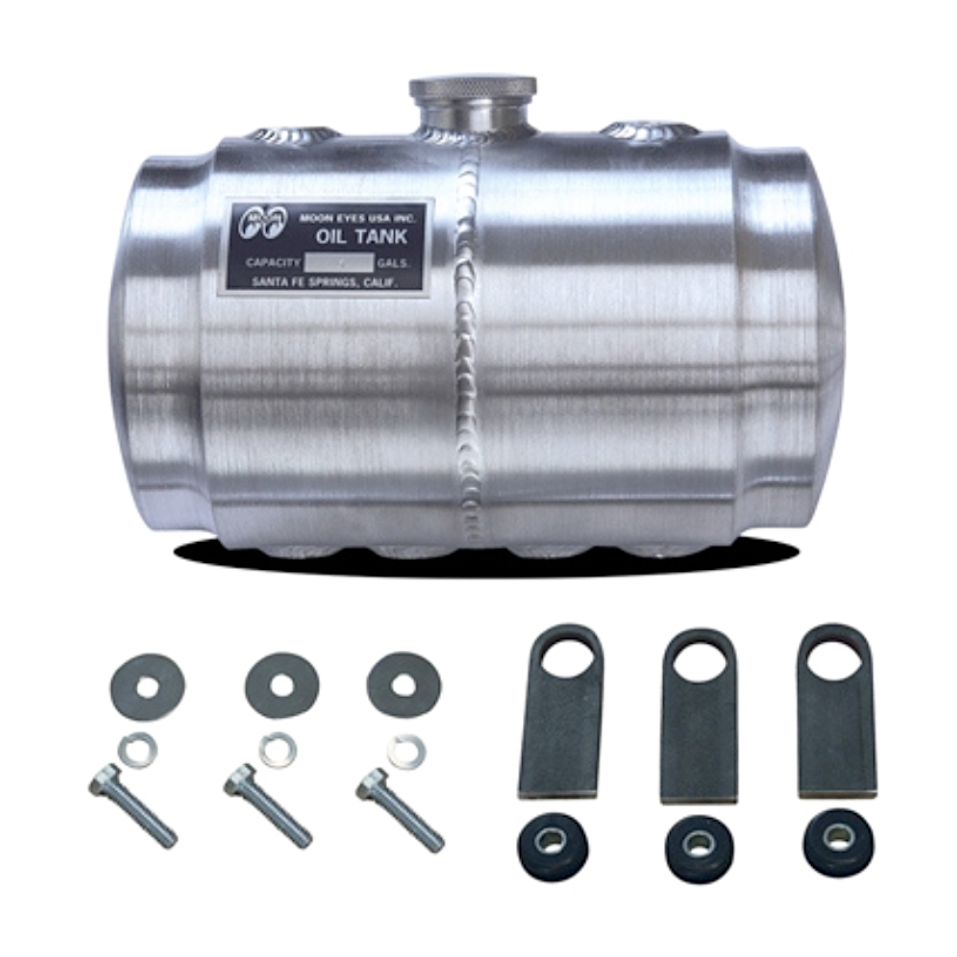

Next generation oil tank stemming from changes to the original Chopper Oil Tank design, comes the new and adapted MOON MOTORCYCLE OIL TANK!To simply installation and broaden application usage, the 1-gallon aluminum MOON Tank mounts without the use of the traditional MOON Tank brackets. Instead, it uses three tab stays as brackets that are matched to pre-fabricated mounts within the tank itself. To make mounting easier, tab stays are included but must be welded to the frame or location of mounting position.
All required hardware to mount the tank is included. An outlet, return, vent and drain on the kickstand side is located on the bottom. Please note that the mount stays (brackets) must be professionally modified and welded into place per specific application. Once complete, you are ready to hook it up and GO!
All 4 bungs on bottom of tank are 1/8NPT.
Fittings and plug are no longer supplied in this kit.
Bungs are marked as follows
F feed
R return
V vent
D drain
MP1006 1 gallon tank is 6" diameter by 10" long.
